DSZ-70JUN

Magnification : 20x to 70x (filed of view : 10mm to 2.8mm)

Objective Lenses : 2.0x to 7.0x (zoom ratio : 3.5:1)

Eyepieces : Wide Field 10x (DSW10xZ), Field number 20

Optical Body : 360 degrees rotatable binocular type, 45 degree inclined eyepiece tubes

Working Distance : 80mm

Interpupillary Distance : 52mm to 75mm

Diopter Adjustment : +/- 7.2D on both eyepiece tubes

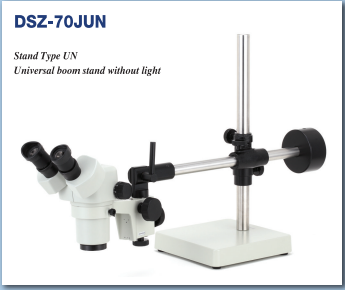

Stand Type (Hieght) : Universal boom type (490mm)

Incident Illumination : Nill

Transmitted Light :

Stage plate :

Base Size : 230mm x 230mm

Overall Height : 544mm

Net Weight : 21.4kg

Accessories : Rubber eyeguards, tension control pin, Dust cover
