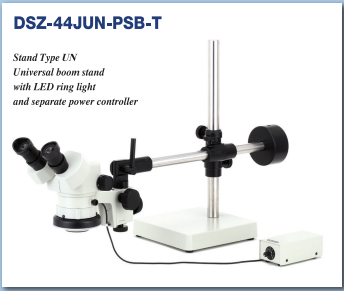

DSZ-44JUN-PSB-T

SPECIFICATION

Magnification : 10X to 44x (filed of view : 23mm to 5.2mm)

Objective Lenses : 1.0x to 4.4x (zoom ratio : 4.4:1)

Eyepieces : Wide Field 10x (DSW10x), Field Number 23

Optical Body : 360 degrees rotatable binocular type, 45 degree inclined eyepiece tubes

Working Distance : 90mm

Interpupillary Distance : 52mm to 75mm

Diopter Adjustment : +/- 7.2D on both eyepiece tubes

Stand Type (Hieght) : Universal boom type (490mm)

Incident Illumination : LED with intensity control supply box

Transmitted Light :

Stage plate :

Base Size : 230mm x 230mm

Overall Height : 544mm

Net Weight : 23.9kg

Accessories : Rubber eyeguards, tension control pin, Dust cover
